SIMULINK MODEL OF A SIMPLE SINGLE PHASE POWER SYSTEM USING MATLAB SIMULINK WITH FAULT SIMULATION

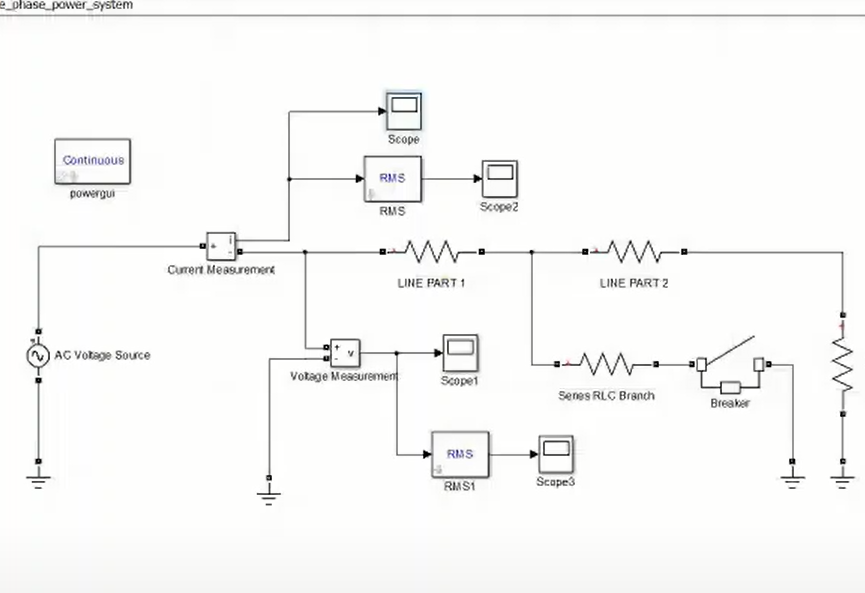

This Simulink model represents a simple single phase power system. In this model, you also can simulate a fault at the transmission line, change the fault location and fault resistance values and observe the effects on the measured current.

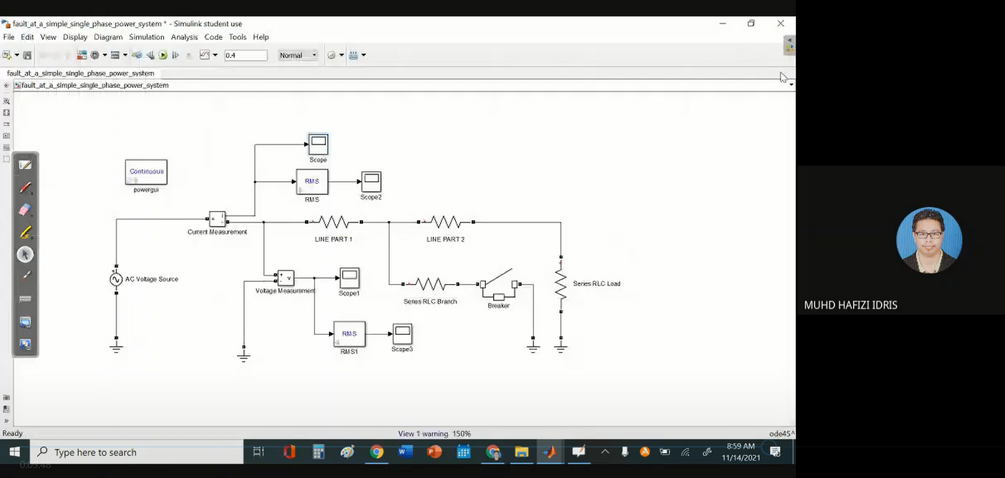

You can refer to this video on how to simulate the fault:

https://www.youtube.com/watch?v=xaAL9-A1Vkg
